Certification
NSF & UL Compliant Designs
Every platform is engineered to NSF sanitary and UL electrical standards as a baseline — not an option.
Equipment · DPS Stainless Steel Systems
Sanitary Systems, Configured to Fit Your Line.

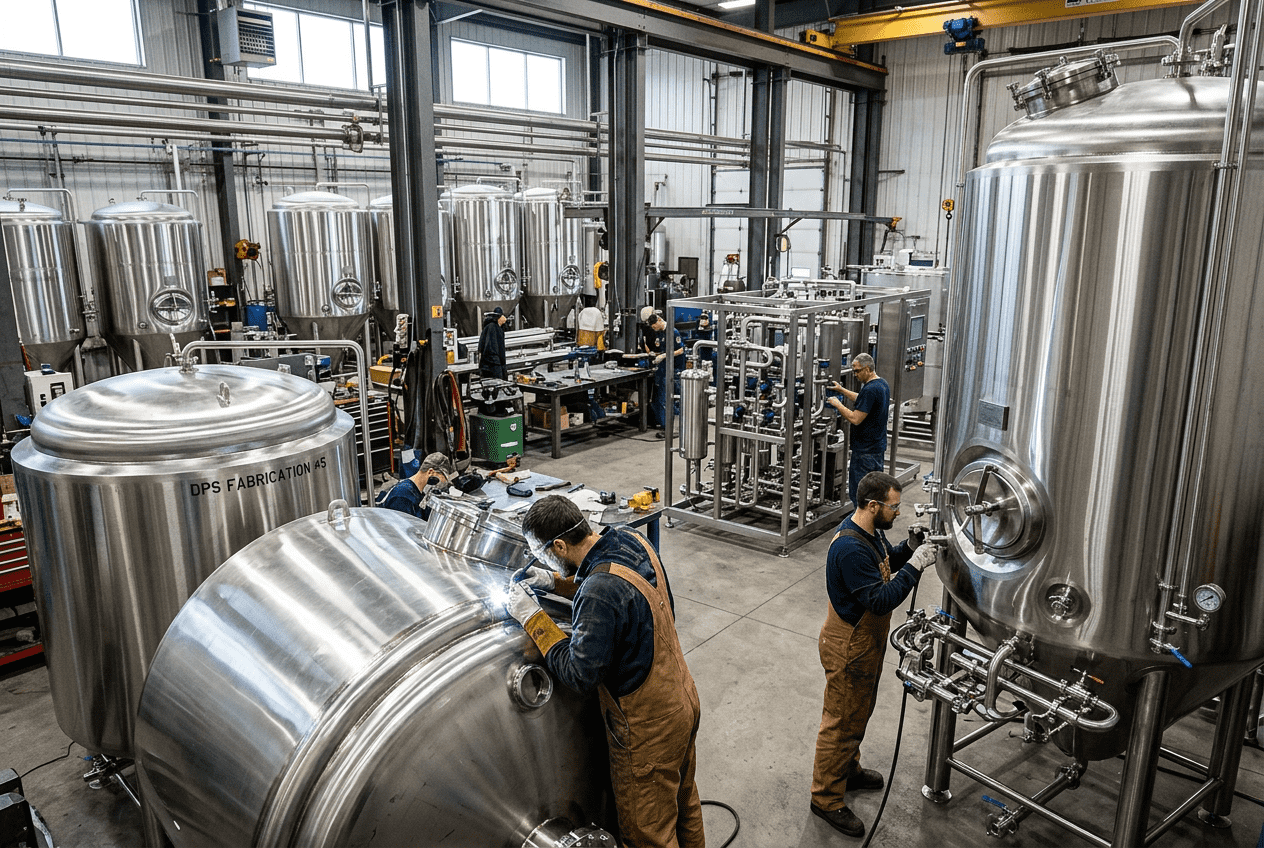

DPS designs and manufactures stainless steel process equipment for automated cleaning, batch cooking, bulk storage, mixing, and product marination — engineered for sanitary production where repeatability, cleanability, and uptime are non-negotiable.
Download Equipment Information- 04
- Equipment Families
- 25K
- Gallon Max Capacity
- 316
- Stainless Contact
- 18w
- Typical Lead Time
DPS EQUIPMENT · SANITARY GRADE
- // Certification
- NSF & UL Compliant
- // Rev.
- 04 / 26
The Four Families
Four Platforms. One Standardized Equipment Package.
Each platform can be configured to match required capacity, agitation, utilities, and controls — so new and existing lines can be supported with a consistent, controls-ready architecture.
— 01
CIP Skids
100 – 5,000 GAL
Modular clean-in-place systems for automated cleaning of process vessels, lines, and filling equipment.
— 02Kettles
200 – 1,000 GAL
Jacketed kettles for batch heating, cooking, and mixing of liquid and semi-liquid products.
— 03Storage & Mix Tanks
500 – 25,000 GAL
Vertical stainless tanks for storage, staging, and mixing of ingredients and finished product.
— 04Marination Tumblers
500 – 5,000 LB
Vacuum-capable tumblers for consistent flavor distribution and product conditioning.
CIP SKIDS · CONFIGURABLE
- // Capacity Range
- 100 – 5,000 gal
- // Circuits
- 1, 2, or 3+

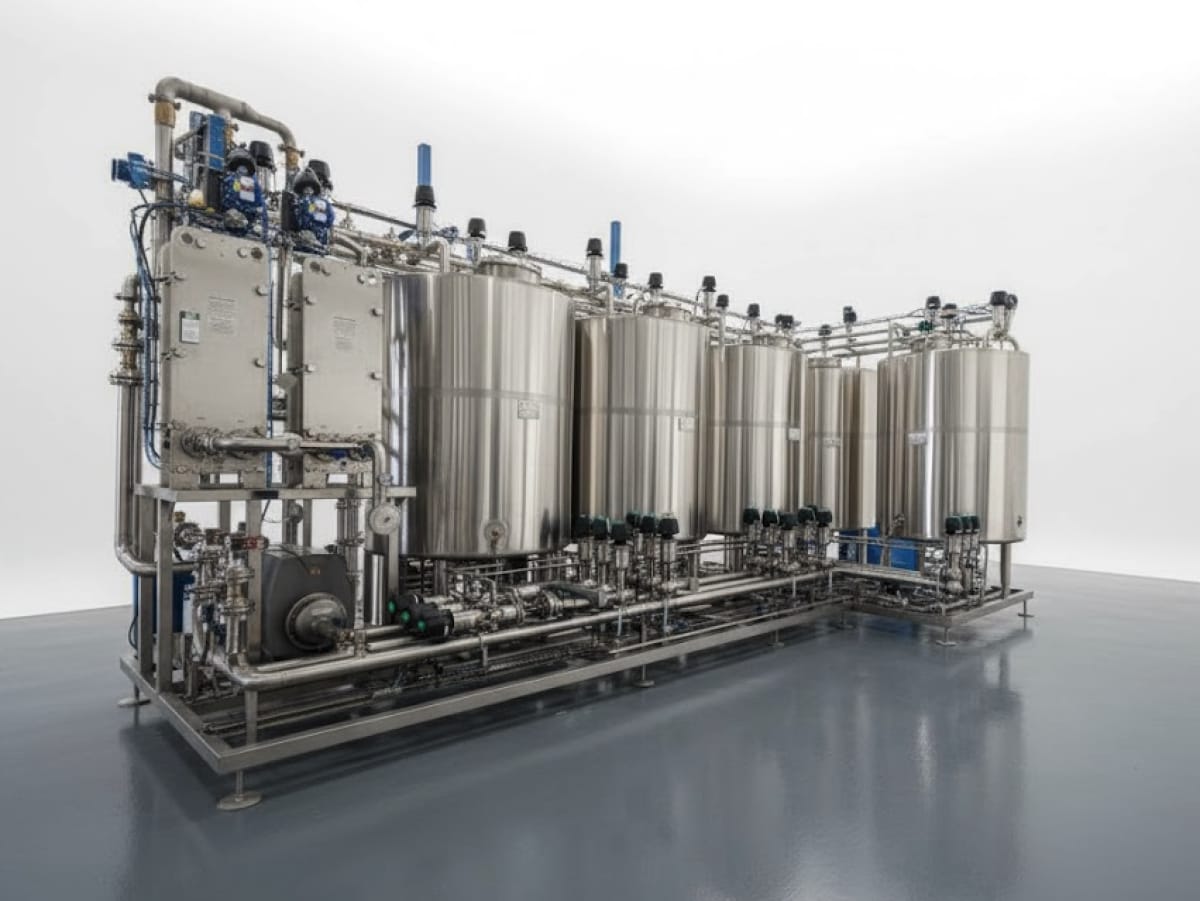

— PLATFORM 01
Cip Skids — Automated Sanitary Cleaning.
Modular clean-in-place systems designed for automated cleaning of process vessels, lines, and filling equipment. Configurable tank, circuit, and valve packages support a wide range of sanitary cleaning applications without compromising on uptime or repeatability.
- Capacity
- 100, 200, 500, 1,000, 5,000 gal
- Number of Vessels
- 2, 3, or 4
- Number of Circuits
- 1, 2, or 3+
- Valve Options
- Sanitary butterfly or mixed-proof (custom)
- Standards
- 316 stainless, NSF sanitary
- Controls
- Fully automatic, controls-ready
KETTLES · JACKETED & MIXED
- // Capacity Range
- 200 – 1,000 gal
- // Mixing
- 3 Mixer Options

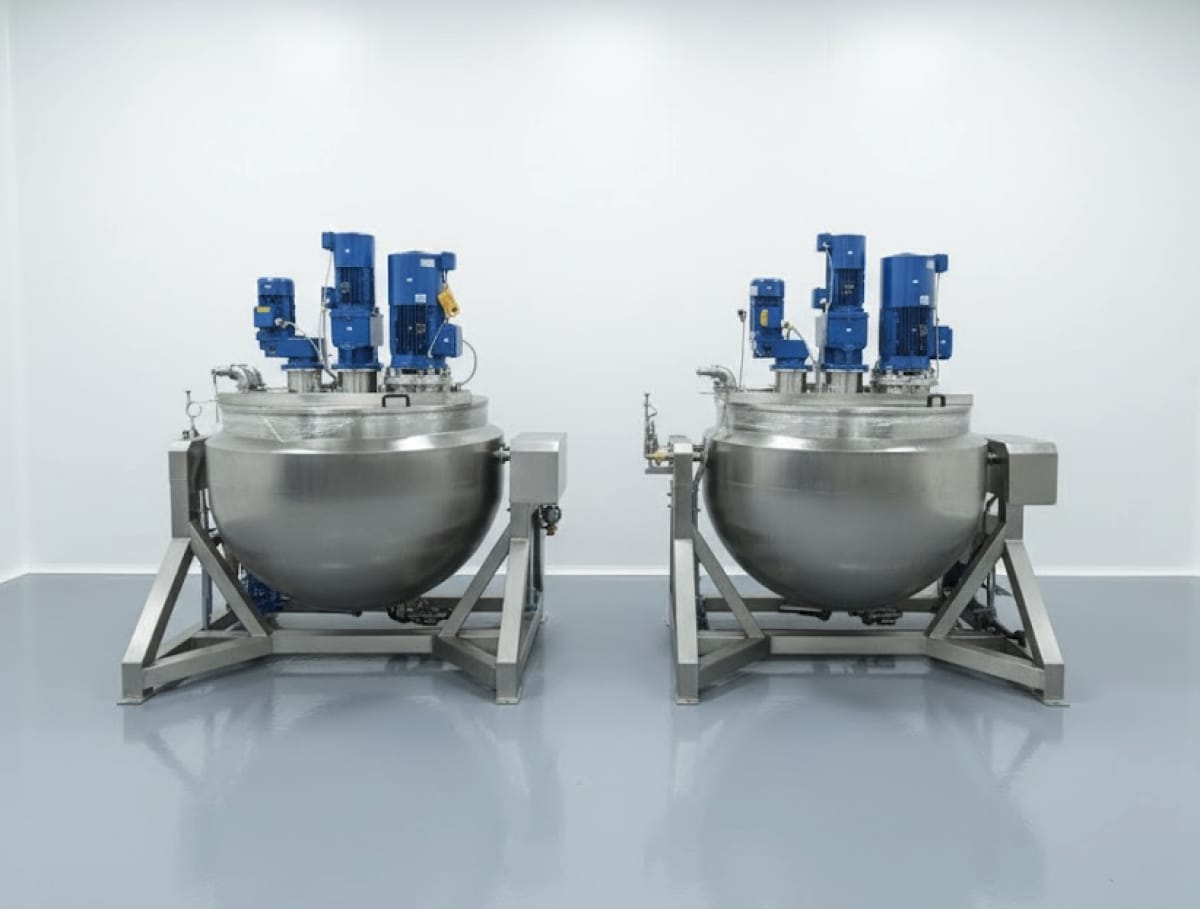

— PLATFORM 02
Jacketed Kettles for Recipe-Driven Batching.
Jacketed kettles for batch heating, cooking, and mixing of liquid and semi-liquid products. Mixing, control, and cooling options allow each unit to be tailored to specific recipes and process requirements — from sauces and bases to dairy and soup stocks.
- Capacity
- 200, 500, 1,000 gal
- Side Mixer
- Side mixer or non-agitated side
- Central Mixer
- None, or central scraper low-shear
- High-Shear Mixer
- Available or not required
- Controls
- Relay-based or integrated packages
- Cooling Circuit
- With or without cooling circuit
STORAGE & MIX · VERTICAL
- // Max Capacity
- 25,000 gallons
- // Certification
- 3-A Available

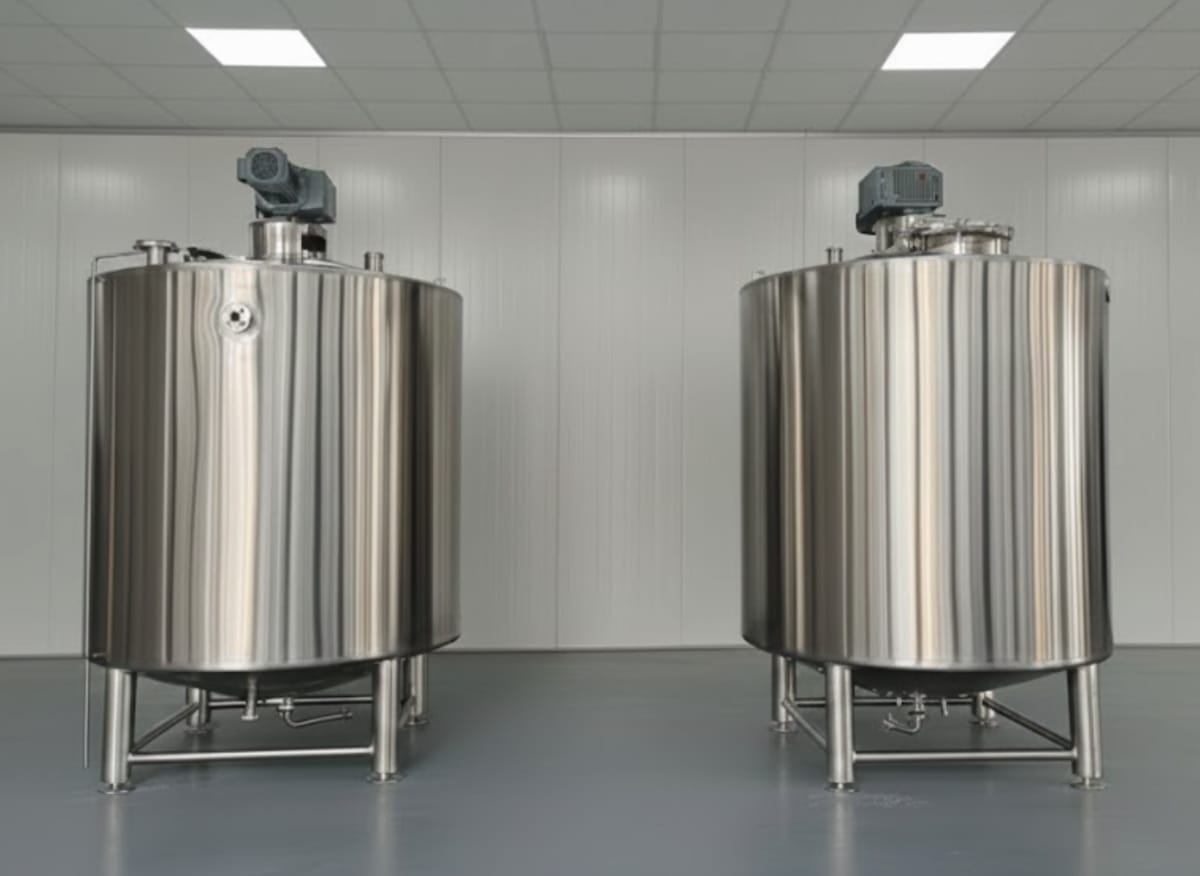

— PLATFORM 03
Storage & Mix Tanks — Scaled to the Facility.
Vertical stainless tanks for storage, staging, and mixing of ingredients and finished product. Multiple agitation and certification options support both general service and high-sanitary applications across food, beverage, and dairy environments.
- Tank Type
- Non-agitated, side-agitated
- Size
- 500, 1K, 5K, 10K, 25K gal
- Agitation
- Low-shear or exterior silo
- 3-A Certification
- Available where required
- Standards
- NSF sanitary design
- Interior
- 316 stainless steel
MARINATION · VACUUM CAPABLE
- // Load Capacity
- Up to 5,000 lb
- // Vacuum
- Optional

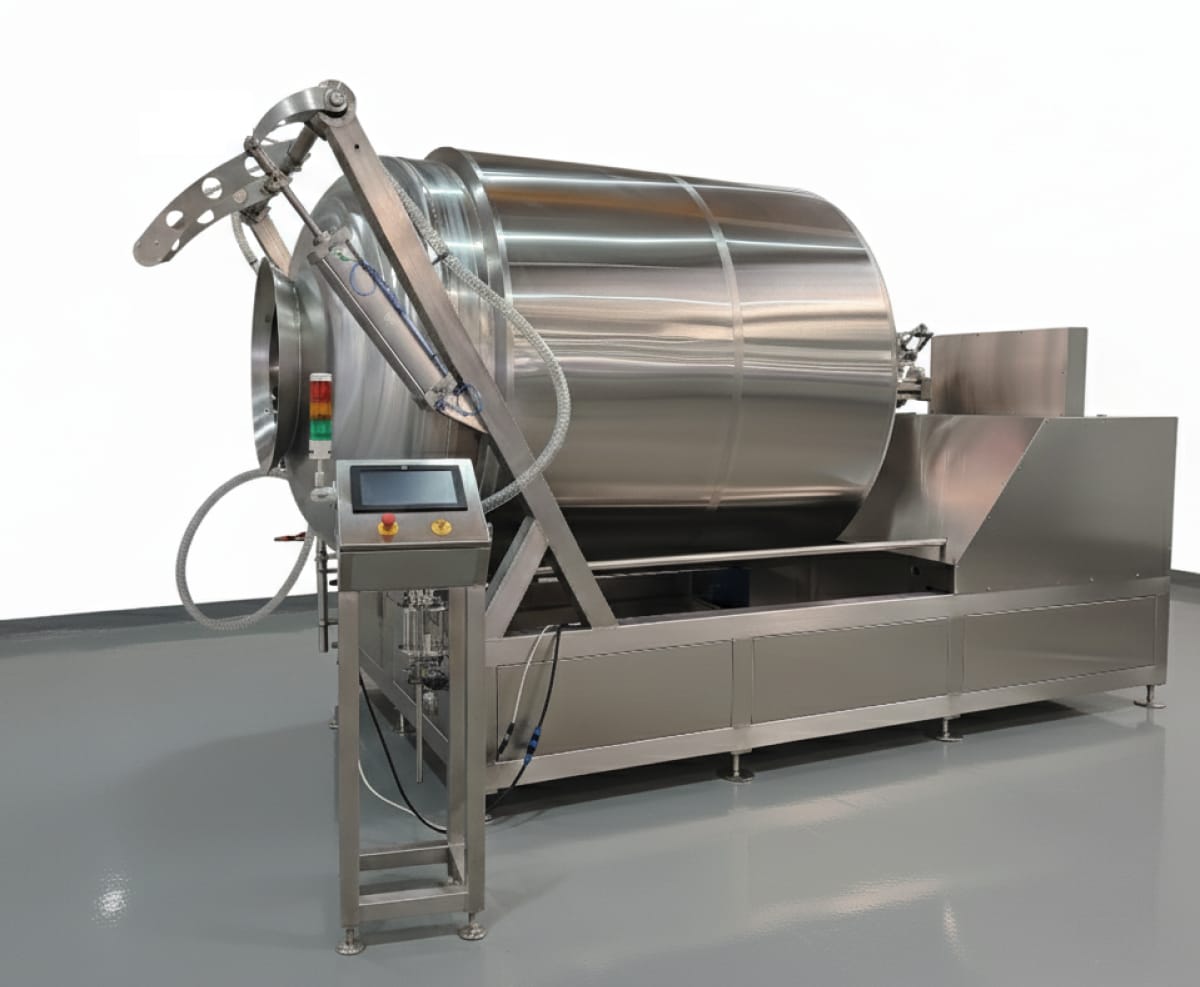

— PLATFORM 04
Marination Tumblers for Protein & Prepared Food.
Marination tumblers designed for consistent flavor distribution and product conditioning. Configurable vacuum, cooling, and material-handling accessories support a range of protein and prepared-food applications — from whole-muscle injection recipes to marinade-forward finished products.
- Capacity
- 500, 1K, 2K, 5K lb
- Vacuum
- Available or non-vacuum
- Cooling
- Non-jacketed or cooling jacket
- Accessories
- Pneumatic loading / dump cart
- Controls
- Basic or enhanced options
- Standards
- NSF · 316 stainless interior
Program Highlights
Standards That Ship with Every Platform.
Every DPS equipment package is engineered around a shared set of sanitary baselines — so procurement, quality, and operations teams can standardize specification and reduce approval cycles.
Lead Time
18 – 20 Week Typical Delivery
Standardized platforms and configurable options keep lead times predictable and schedules honest.
Engineering
FEL-2 Support Included
Front-End Loading engineering support available on qualifying projects — no separate engagement required.
Controls
Advanced Automation Ready
Controls-ready architectures with advanced automation and CIP options for seamless plant integration.
Shared Baselines
Standard Configuration Values Across All Families
- Construction
- Premium stainless sanitary build
- Control Systems
- Advanced configurable options
- CIP Capability
- Integrated sanitary support
- Quote Method
- Custom configured equipment packages
Plan Your Next Step
Plan the Interfaces Around Your Equipment
Compare an equipment platform with its process engineering requirements, not capacity alone. Define the product duty, cleaning method, utility conditions, controls boundary, installation access, and evidence needed for acceptance.
Use the utility demand matrix and commissioning evidence register to prepare the interfaces around a purchase. The manufacturing scenarios pillar connects those decisions with expansion, relocation, and product adaptation; published project cases provide additional scope context.
Discuss your equipment boundary and open interface questions through the project inquiry form.
Solution
Process Utilities & Infrastructure Planning
Connect production and cleaning demand with the utility systems that support them, before selecting equipment or committing to a plant modification.
Explore This GuideSolution
Commissioning & Production Startup Planning
Define the evidence, responsibilities, and readiness gates needed to move from installed equipment to controlled production and operational handover.
Explore This GuideSolution
Equipment Manufacturing & Supply
Connect equipment selection and fabrication to the process basis, sanitary requirements, installation interfaces, and long-term maintainability before a vessel or skid reaches your plant.
Explore This GuideReady to Configure
Start with a Platform. Finish with Your Line.
Tell us what you’re producing, how much, and under what conditions — we’ll scope a configured equipment package with capacity, controls, and sanitary certifications to match.
Custom Configured Process Equipment • Rev 04/26
